Product 07
Filling valve / receptacle and cylinder valve
The station-side refilling connection, and the valve that isolates gas at the cylinder.

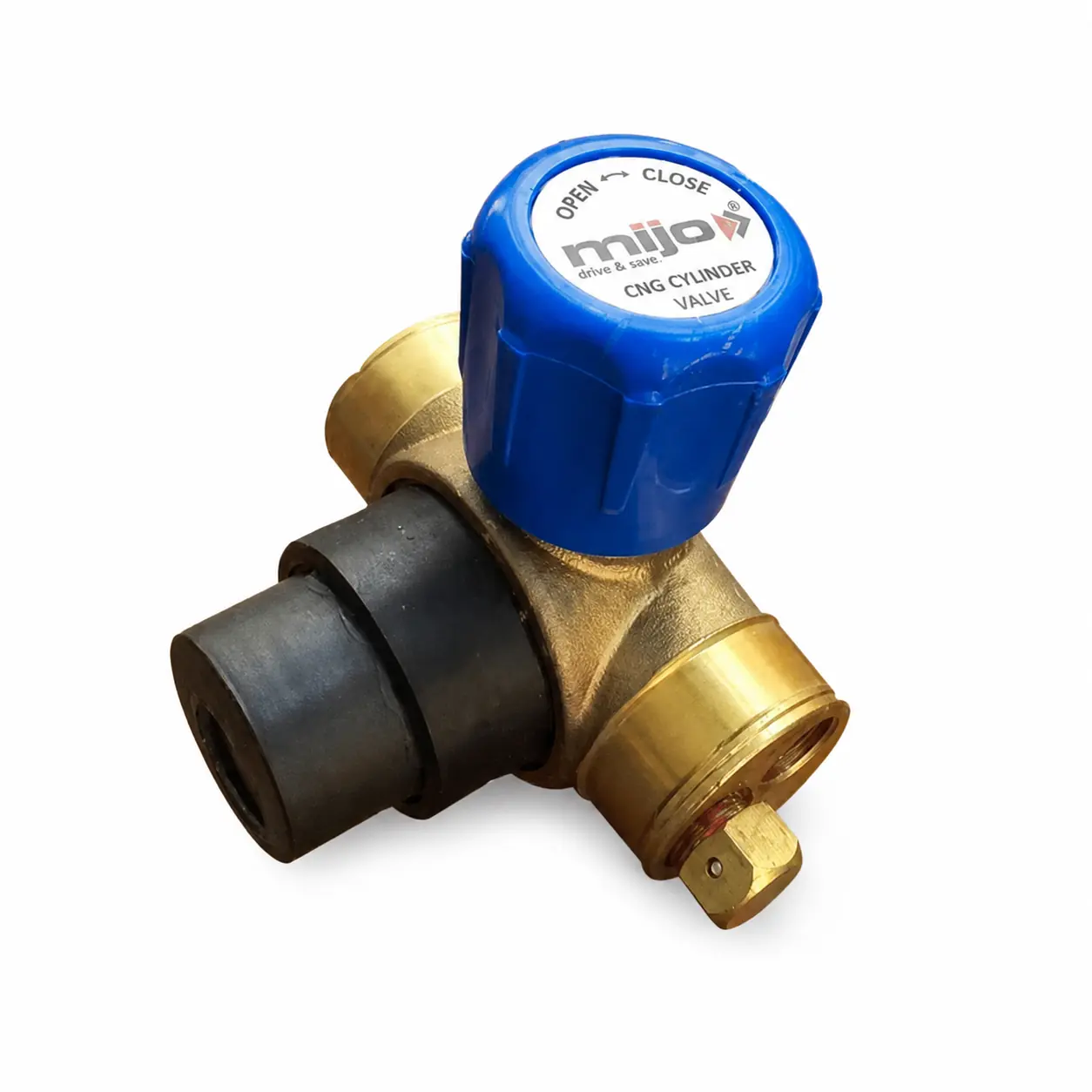

MIJO CNG cylinder valve with blue handwheel and pressure-relief device
01What it does
Its role in the system.
The refilling valve is the vehicle’s station-side filling connection, carrying CNG into the high-pressure circuit. The final valve version is selected for the applicable filling standard.
Mounted directly on the CNG cylinder, the cylinder valve connects the storage cylinder to the vehicle’s high-pressure line, provides its outlet and lets the stored-gas supply be isolated manually.
Compatibility and the final cost are confirmed only after your vehicle is assessed.
02Technical information
Specifications.
- MRV02.NGV refilling valve
- Forged-brass body, NGV filling unit, ECE R110
- Maximum working pressure
- 260 bar
- Working temperature
- −40 °C to +120 °C
- Weight / dimensions
- 0.40 kg · 89 × 34 × 76 mm
- Cylinder valve
- Blue handwheel for manual isolation, with pressure-relief device
Product photographs and specifications: MIJO Auto Gas.
