Product 03
Pressure regulator / reducer
ISO 15500-approved reducers that bring cylinder pressure down to the rail’s stable working pressure.

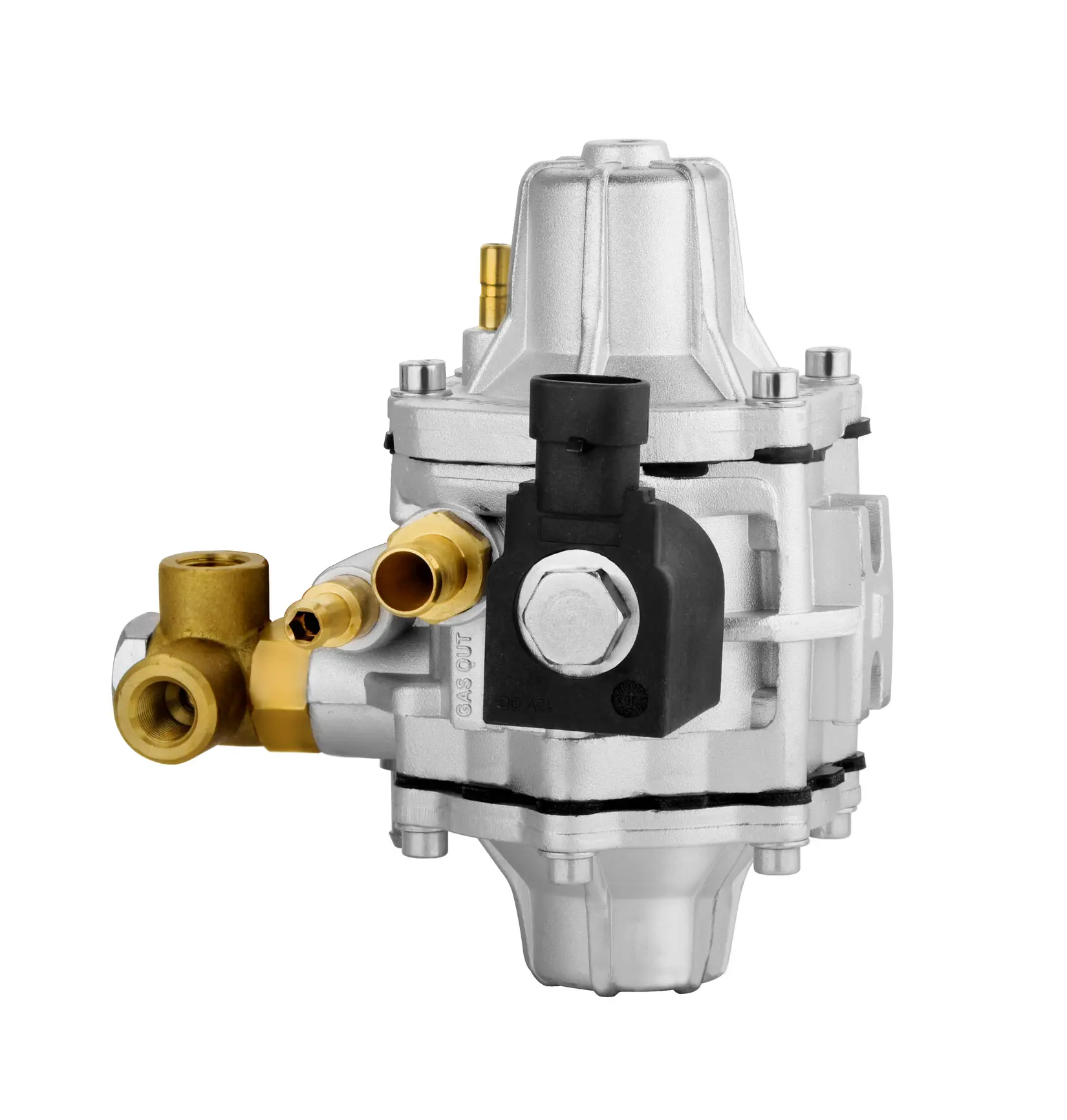

MIJO SR09 CNG two-stage reducer with black low-pressure solenoid
01What it does
Its role in the system.
CNG flows from the cylinder through the high-pressure circuit. The reducer lowers cylinder pressure to the stable, calibrated working pressure required by the injector rail.
The featured SR03 Compact combines CNG pressure regulation with an electrically operated shut-off valve in a space-efficient housing, and its working pressure is set to match the engine, injector rail and calibration. Engine demand, installation layout and calibration decide the final reducer.
Compatibility and the final cost are confirmed only after your vehicle is assessed.
02Technical information
Specifications.
- SR03 Compact
- ISO 15500-approved; pressure regulation with electrically controlled gas shut-off
- SR09 CNG
- Two-stage reducer with low-pressure solenoid valve, die-cast aluminium body
- SR09 maximum inlet pressure
- 260 bar
- SR09 outlet pressure
- Adjustable 0.90–2.60 bar
- SR09 application
- Up to 250 HP
- Production testing
- 200–250 bar reducer testing
Product photographs and specifications: MIJO Auto Gas.
